Overview

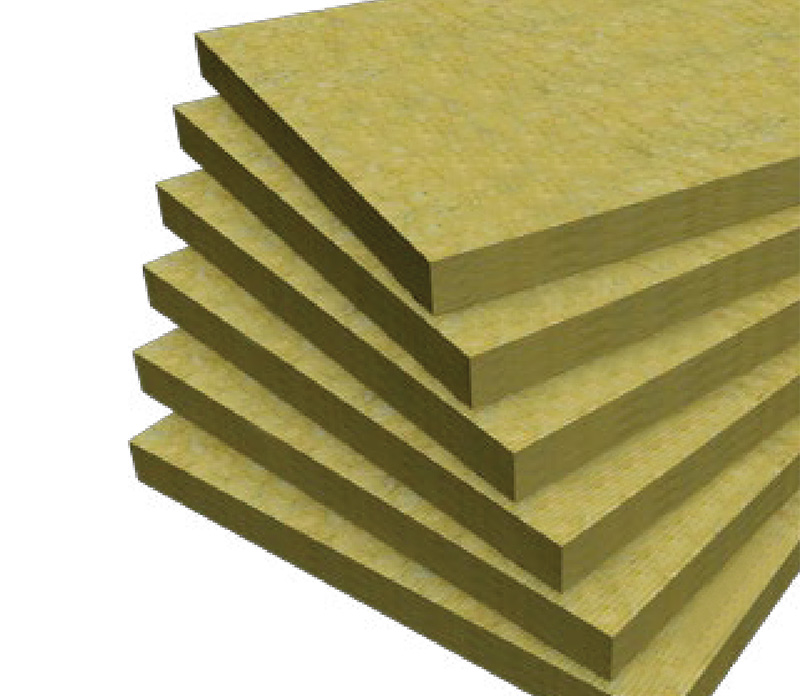

Floating floor panel is a bare stone wool plate produced for areas that require compressive strength and require load bearing, sound insulation, vibration and fire resistance. Floating floor panel is used for the floors of the buildings, floors between floors and under the vibration source base for the purpose of heat, sound and vibration insulation.
Stats & Charts
APPLICATION PRINCIPLES
Panel placed on the floor are bonded to the lateral walls of the floor up to the height of the leveling concrete to prevent vibration transfer. Before the trowel coating is poured, it should be covered with a polyethylene fabric. When it is supported with wire and reinforcements (PP fiber), a layer without shrinking cracks will be obtained. Then the application is completed by covering the desired flooring material.
This panel used Between two flats, under the concrete, Under the source of vibration, Floor coverings in flats and buildings
Product Code |
Density(Kg/m3) |
Thickness(mm) |
Size(mm) |
Pack Pieces |
Pack(m2) |
Truck Quantity(m2) |
RG-FFP15020 |
150 |
20 |
600x1200 |
12 |
8.64 |
4250 |
RG-FFP15025 |
150 |
25 |
600x1200 |
12 |
5.76 |
3400 |
RG-FFP15030 |
150 |
30 |
600x1200 |
8 |
5.76 |
2833 |
